Ball Gage Calc by MahlerWorks
Match System
Dark Mode
Light Mode
Settings
Calculation Mode
Diameter → Surface to Ball Top
Surface to Ball Top → Diameter
Countersink Diameter (A)
Countersink Angle (B)
Ball Size (C)
Is there a thru-hole?
No
Yes
Hole Size (D)
Minimum Ball Size (E)
—
Maximum Ball Size (F)
—
Surface to Ball Top (G)
—
Calculate
Reset
History
Download Text
Download DXF
Copy Text
Download PDF

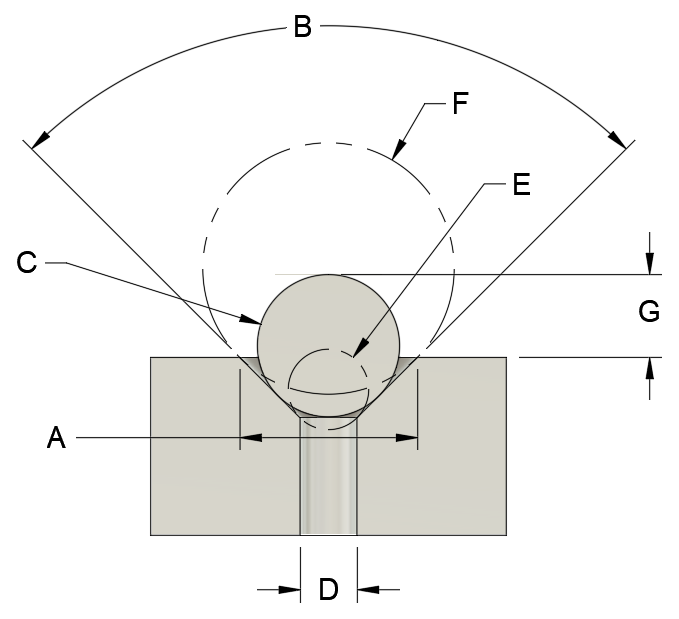

Reference Diagram
Static
Live View
History
×
Settings
×
Decimal Places
Show Trailing Zeros
Show Leading Zeros
